Implement Custom Bot

Company Request

Cotalker realizes that the Ruanda Company team uses the value of the uf and dolar a lot when chatting. So, they offer them another feature: every time they want to know the daily value of those economic indicators, they only send /uf or /dollar to show it in chat.

To do that cotalker will use the api of mindicador https://mindicador.cl/ . It is an open source service that provides economic indicators for Chile in JSON format. The source of information is the Central Bank of Chile.
They also have the following indicators:

• unemployment rate
• euro
• ipc (consumer's price index)
• bitcoin
• among other

Functional Requirements

Access Role

• User with the permission admin-*-write, which allows all to access to the admin.
• User with the permissions web-admin-write and web-admin-read to set up in the admin.
• User with the access role read admin.

User

• Having completed User Tutorial

Steps

1. Access the administrator and open bots
2. Press + button to create a new bot.
3. Set up the General Information, Access and Function sections:
   • Name: UF
   • User bot name: uf
   • Description: ask for the price of the uf. Source: https://mindicador.cl/
   • Access roles: default
   • Global: Active
   • It's a survey command: Deactive
   • It's a slash command: Active
   • Slash command: uf
4. Set up the Routine builder
   1. Press + Add Stage
      • code: uf_request
      • type: Network request
      • URL: https://mindicador.cl/api/uf
        If you search for this link in a browser, you will see the response in json format
      • Method: GET
   2. Press + Add Stage
      • code: message
      • type: Send Message
      • Content: $JOIN# #(Valor UF:)#($OUTPUT#uf_request#data|serie|0|valor)
        in $OUTPUT#uf_request#data you have access to the json response
      • Content Type: text/system
      • User: $VALUE#user|_id
      • Channels: $VALUE#channel|_id
   3. Max. Iterations: 10
   4. Initial Stage: uf_request
   5. Configure the uf_request stage:
      • Succed Output: message
5. Save

Now we will repeat the same step for the dollar request.

6. Access the administrator and open bots
7. Press + button to create a new bot.
8. Set up the General Information, Access and Function sections:
   • Name: Dolar
   • User bot name: dolar
   • Description: ask for the price of the dolar. Source: https://mindicador.cl/
   • Access roles: default
   • Global: Active
   • It's a survey command: Deactive
   • It's a slash command: Active
   • Slash command: dolar
9. Set up the Routine builder
   1. Press + Add Stage
      • code: dolar_request
      • type: Network request
      • URL: https://mindicador.cl/api/dolar
      • Method: GET
   2. Press + Add Stage
      • code: message
      • type: Send Message
      • Content: $JOIN# #(Valor dolar:)#($OUTPUT#dolar_request#data|serie|0|valor)
      • Content Type: text/system
      • User: $VALUE#user|_id
      • Channels: $VALUE#channel|_id
   3. Max. Iterations: 10
   4. Initial Stage: dolar_request
   5. Configure the dolar_request stage:
      • Succed Output: message
10. Save

Result

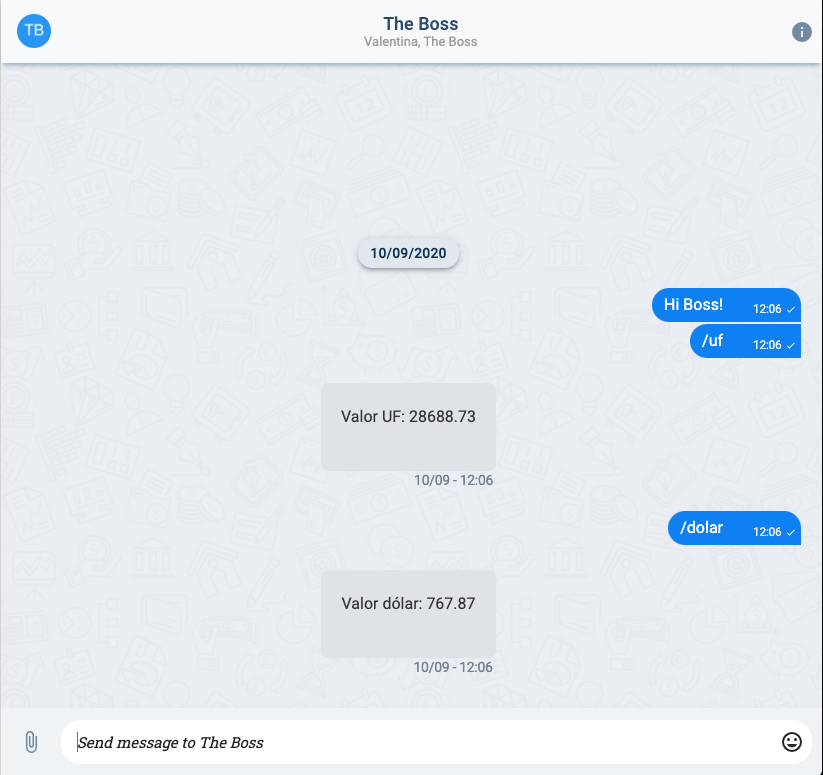

The bot will be look like this:
